Hola amigo, buenas fotos nos pones para iniciar tu recorrido forero. Para empezar. Seguiremos aportando.
1941
OMEGA 2214
2214 FEATURES
- International collection1941
- Case materialStainless steel
- Vintage Watch Watchcase typePress-in
- BraceletLeather
MOVEMENTS
- MovementsManual winding (mechanical)
- Caliber Number30 T2 PC AM
TECHNICAL DATA
Water resistanceNo
[TABLE="width: 888"]
[TR]
[TD="align: center"]
10,000,000 — 10,999,999[/TD]
[TD="align: center"]1944[/TD]
[/TR]
[/TABLE]
30 T2 y family
[TABLE="width: 100%"]
[TR]
[TD][SIZE=+-2] [/SIZE][/TD]
[/TR]
[/TABLE]
[TABLE="width: 100%"]
[TR="bgcolor: #F8C8C8"]
[TD="width: 250"]

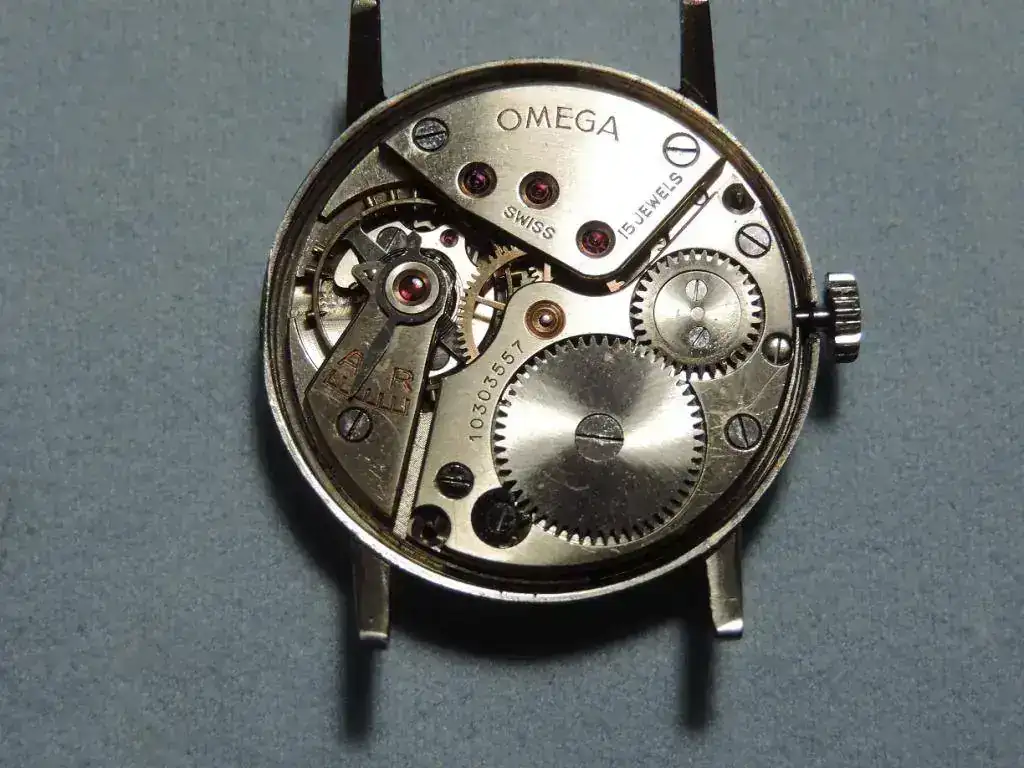

Fig. 1

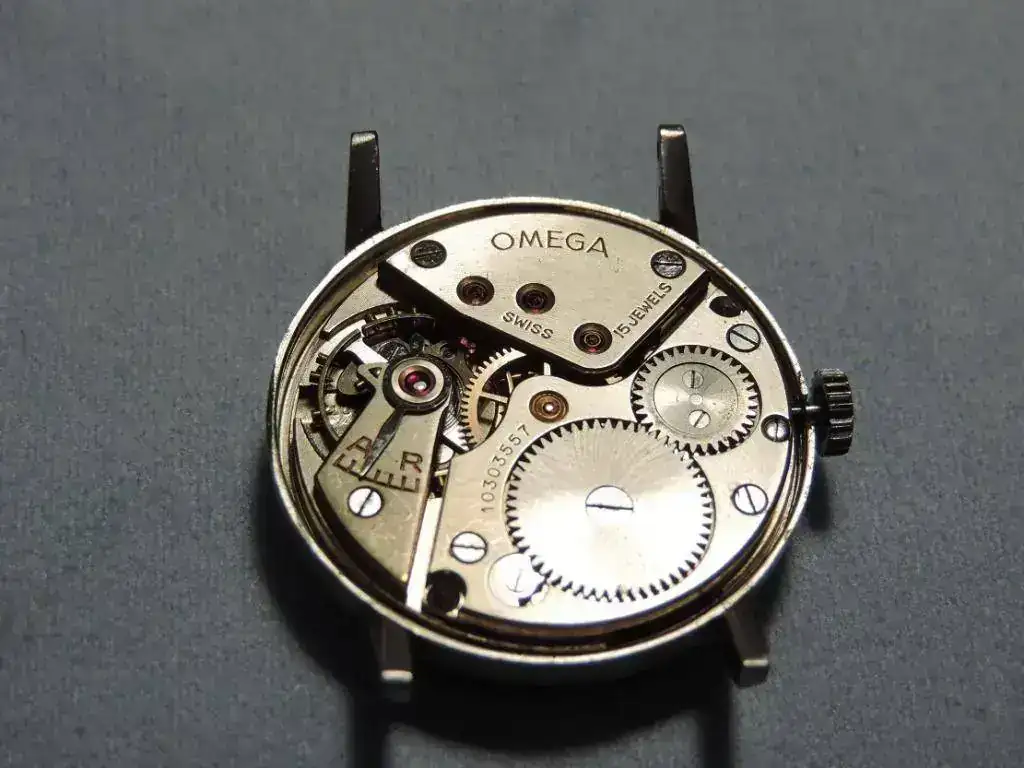

Fig. 2
[/TD]
[TD="bgcolor: #FFD2D2"][SIZE=+1]
Omega 30T2PC[/SIZE]
Features
manual wind
sub second
Data
Dm= 30.0mm, Do= 30.5mm
H= 4.05mm
F= 0.5mm
T= 1.7mm
15 jewels
f = 18000 A/h
power reserve 44h
Balance staff U621(old), U2772(new)
Stem W621
Mainspring / battery
1.50 x 11.5 x 1.40mm
Hands
1.40 x 0.75 / 0.19mm
Comments about the data[/TD]
[TD="width: 40%"]
Remarks
1939-1963, 3000000 (whole family except 269,286)
Breguet hairspring
from 1943 Incabloc
family/generations:
sub second:
30 : 15 jewels, no shock protection
30T1: 15 jewels, no shock protection
30T2: 15 jewels, no shock protection
30T2PC: 15 jewels, Incabloc
260: =30T2 since 1949, 15 jewels
261: 17 jewels, antimagnetic
262: 17 jewels, excenter regulator
265: 15 jewels, antimagnetic
266,267: 17 jewels, antimagnetic
268: ring- instead screw balance
269: flat- instead Breguet-hairspring
sweep second:
30SC : 16 jewels, no shock protection
30T1: 16 jewels, no shock protection
30T2SC: 16 jwwels, no shock protection
30T2SCPC: 17/18 jewels, Incabloc
280: =Omega 30SC T2 since 1949, 17 jewels
281: 17 jewels, excenter regulator
283,284: 17 jewels, antimagnetic
285: ring- instead screw balance
286: flat- instead Breguet-hairspring[/TD]
